TECHNICAL LIBRARY
Bifold Door
TECHNICAL DRAWINGS
NOTE
Since mid 2024 Quickglaze has been used as standard
PROFILE CHARTS
NOTE
Since mid 2024 Quickglaze has been used as standard
SIZE LIMITS
Max Panel Width = 1200mm
Max Overall Height = 2584mm (exc cill)
Min Panel Width = 700mm
Min Overall Height = 1834mm (exc cill)
Max Sash Weight = 100kg
HANDLES
Main Hinged Door
Colours:- White, Black, Chrome, Polished Gold, Satin Silver & Anthracite Grey
POP UP HANDLES
Folding Doors

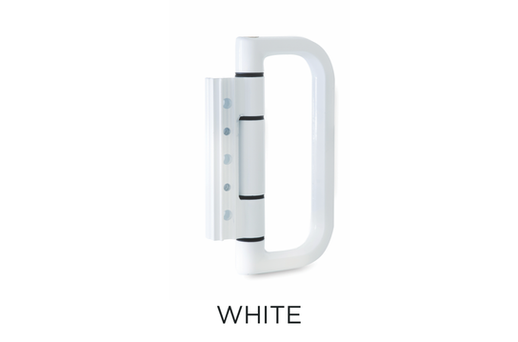

'D' HANDLES
Folding Door
TRICKLEVENT
AVAILABLE SIZES
2700mm² - 300mm long
4000mm² - 400mm long
5000mm² - 600mm long
This 'Flush' tricklevent is fitted into the sash. There is no need for an add-on with this tricklevent. Each vent provides 2200mm sq ventilation, so a few may be required to achieve the regulation requirement.
MAGNETIC CATCH
